5MP HD CCTV Inspection for 200mm+ Pipelines
DannaBot K18 is a CCTV pipe inspection robot designed for pipelines 200 mm and above. With a 5MP HD camera, 100 m operating distance, 360° camera rotation and IP68 protection, it provides clear real-time inspection footage while reducing the need for personnel to enter confined pipeline spaces.
DannaBot K18 is a professional CCTV pipe inspection robot designed for pipelines 200 mm and above. Equipped with a 5MP HD camera, it provides clear real-time video from inside pipelines, helping operators identify cracks, leaks, sediment buildup, corrosion and other visible defects. The robot is remotely operated from outside the pipeline, reducing the need for personnel to enter confined spaces. It is suitable for municipal drainage networks, sewer systems, industrial pipelines, culverts and other infrastructure inspection projects.
See K18 perform real-time CCTV inspection inside pipelines

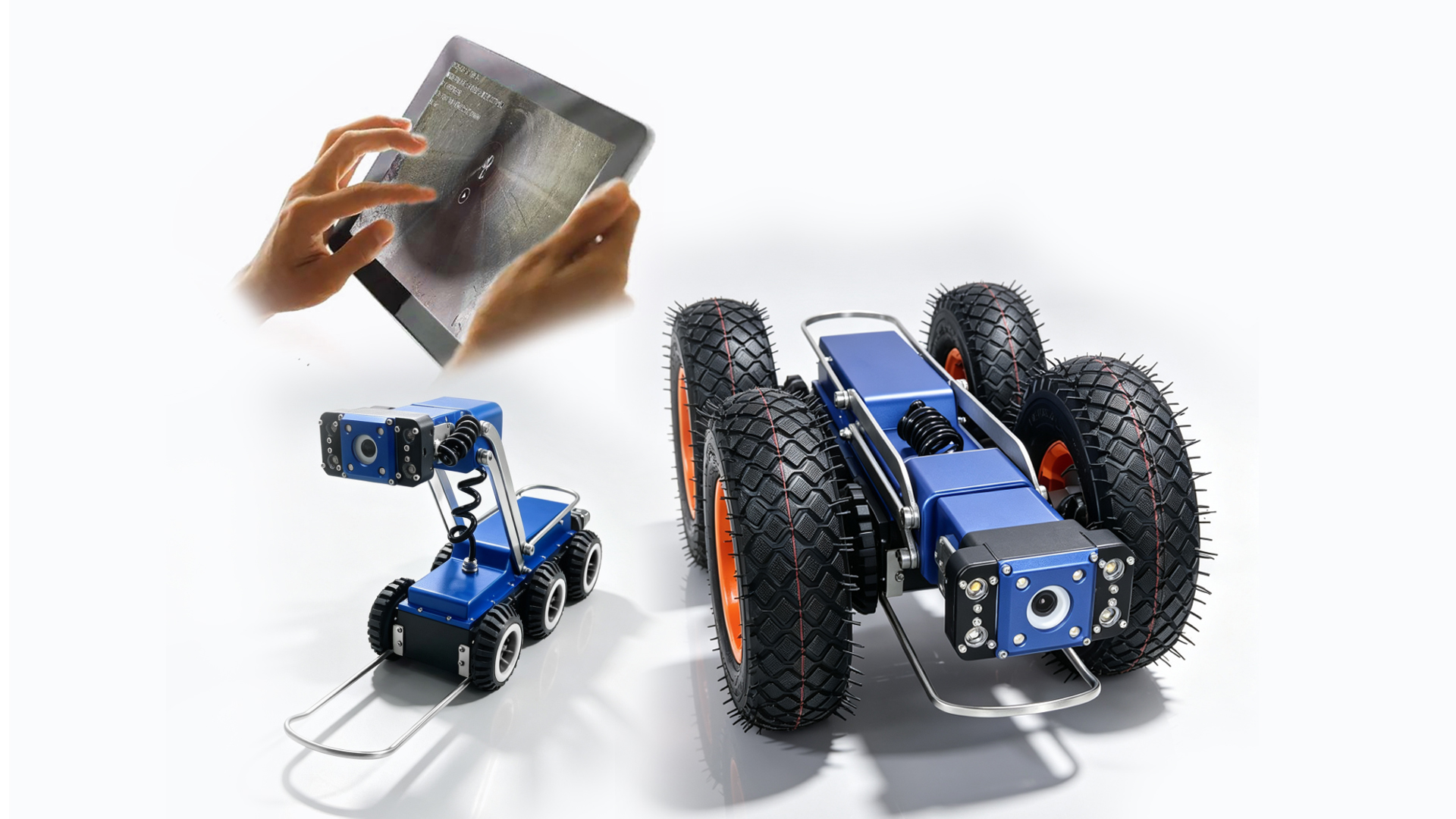

An integrated CCTV inspection system for efficient pipeline inspection

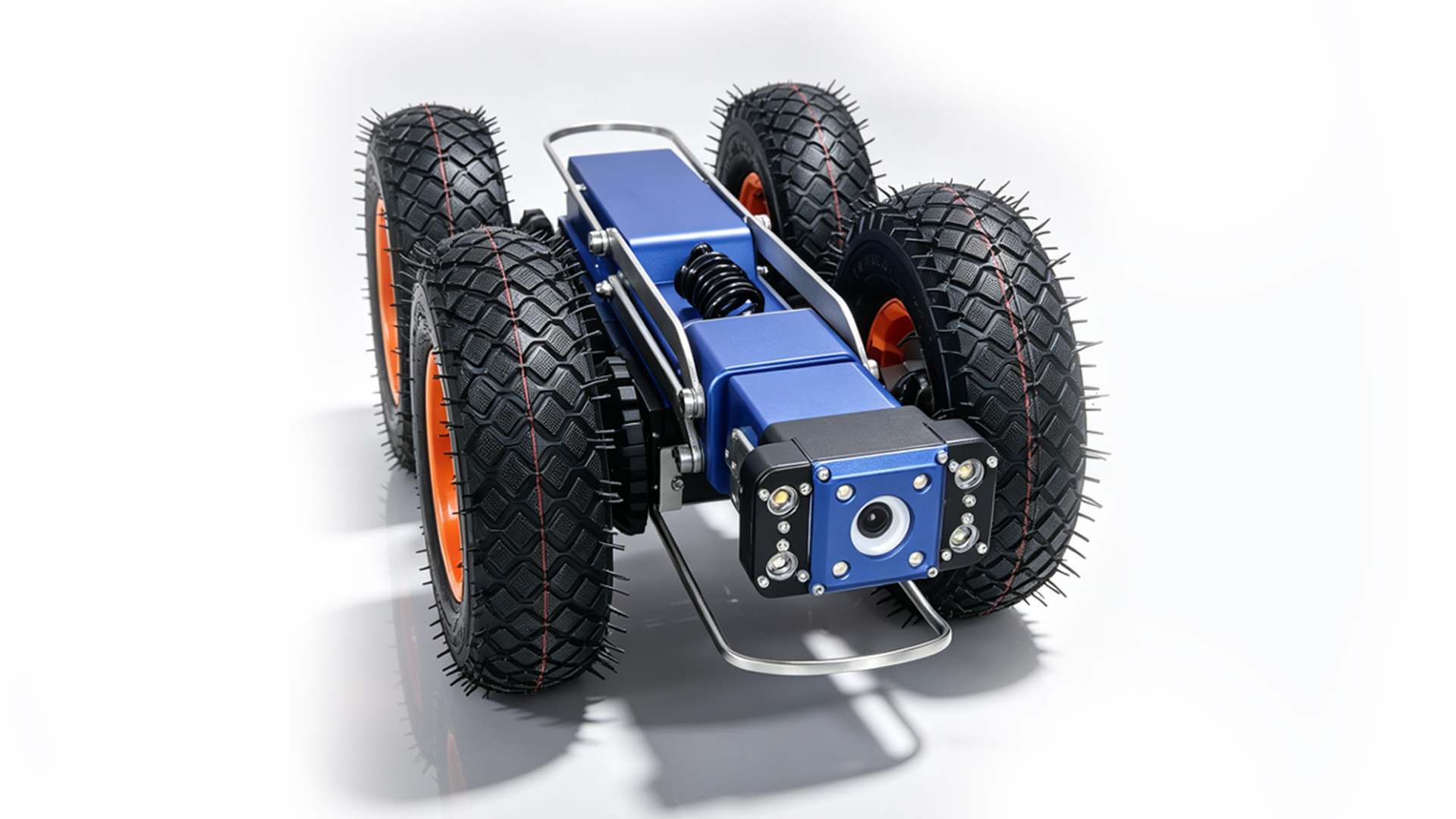

5 MP HD camera with a waterproof, wear-resistant body. Designed for pipes 200 mm and larger, with real-time video inspection.

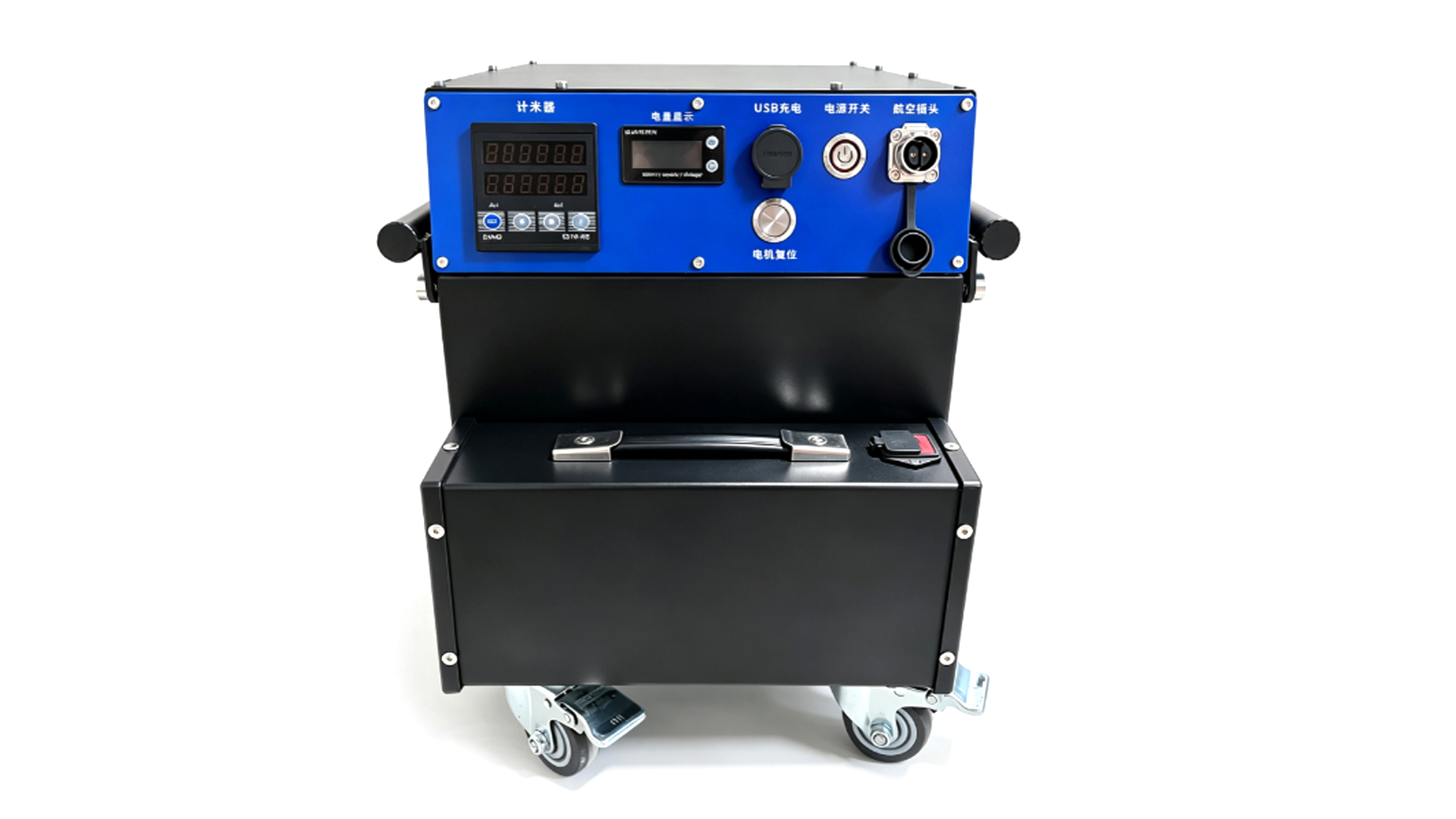

Provides power and HD video transmission through a composite cable, with automatic, manual and assisted cable winding.

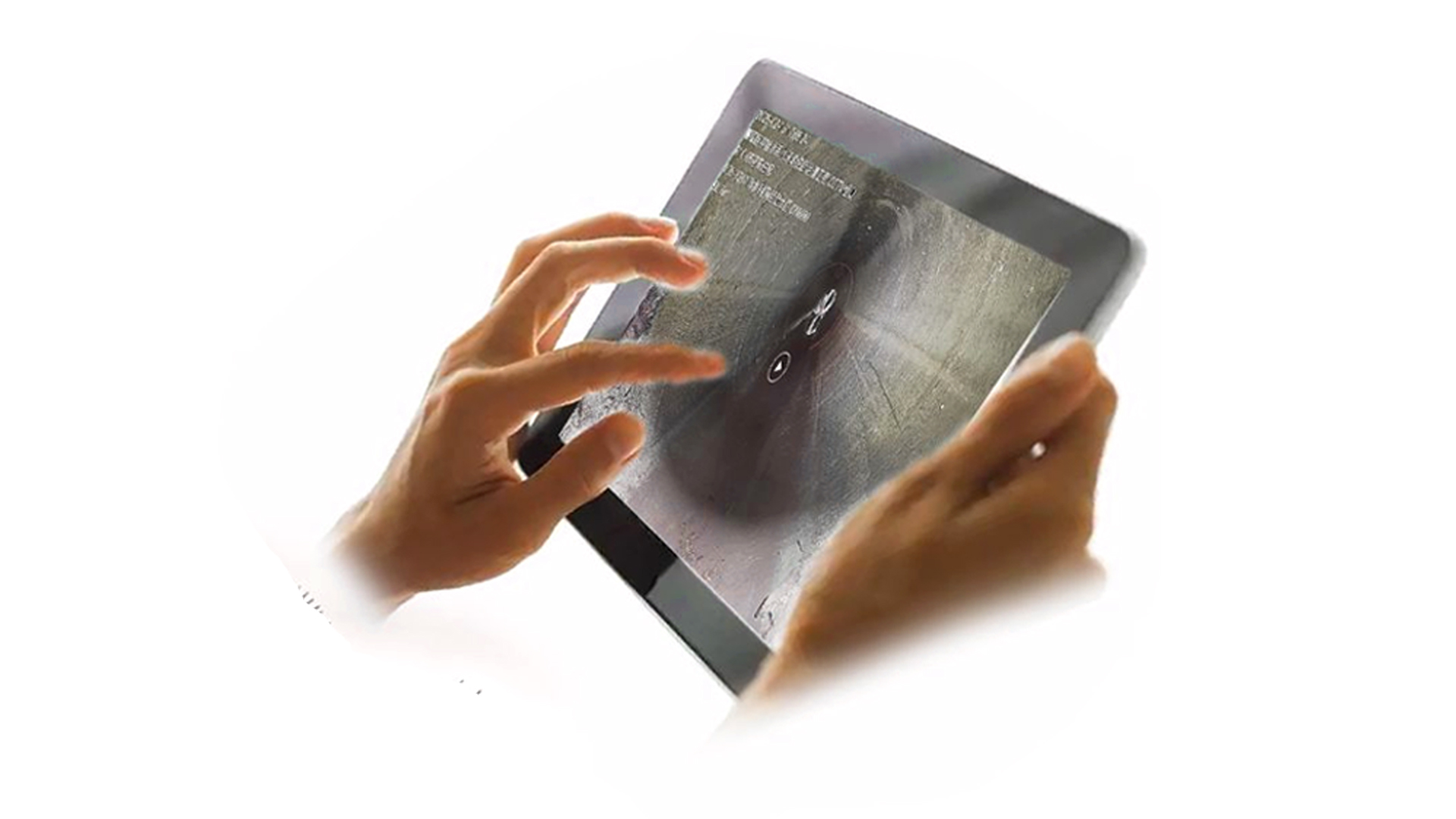

Enables live video monitoring, robot control, camera adjustment, and real-time photo and video recording.

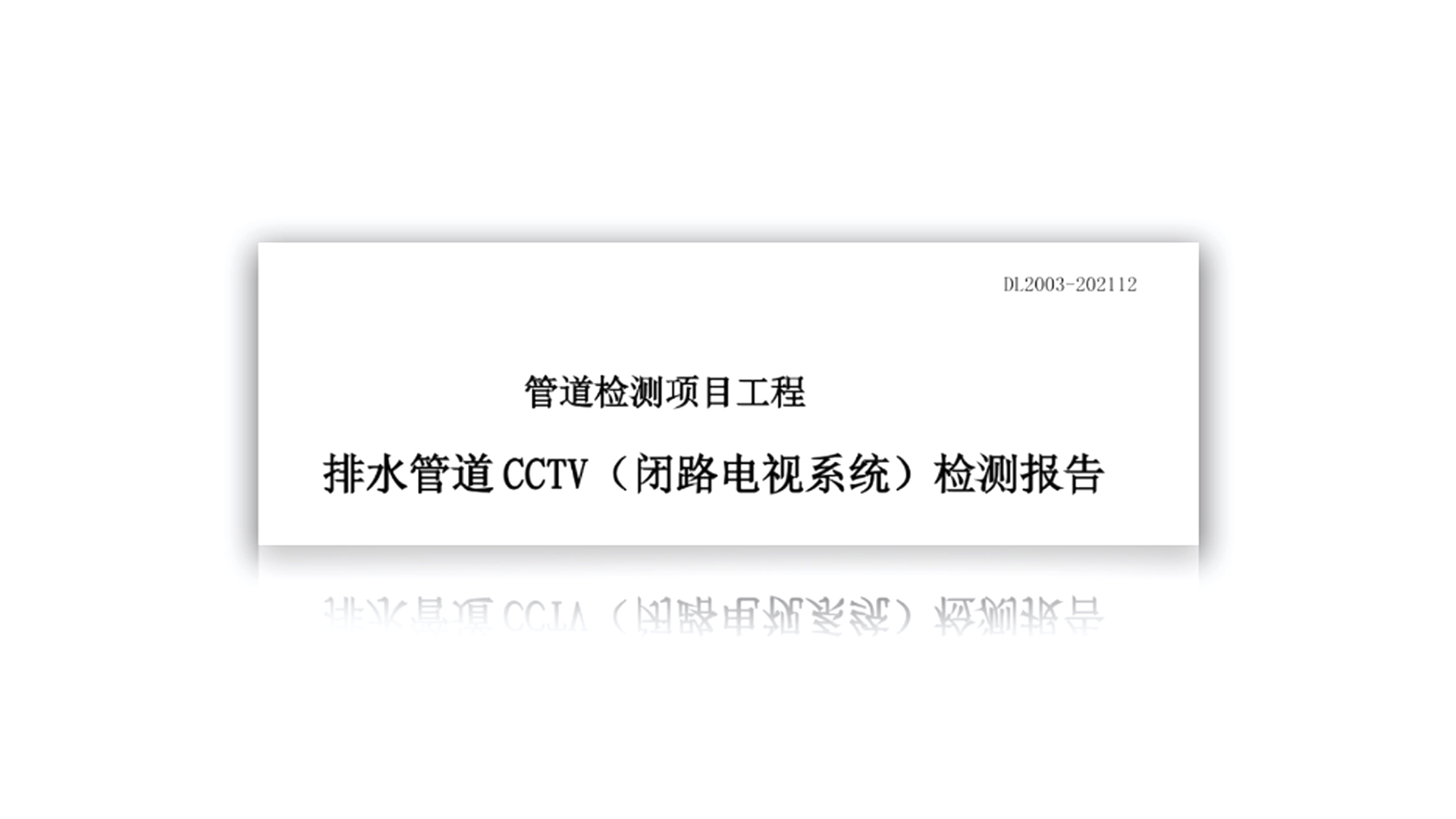

Organizes inspection data to support pipeline reports and document detected defects.
In-house developed for safe and efficient pipeline inspection.
Clear pipeline views for detecting cracks, leaks and sediment.
For drainage and industrial pipelines 200 mm and larger.
Reduces the need for workers to enter confined spaces.
Detailed specifications for reliable CCTV pipeline inspection
| Product Dimensions | 705 × 175 × 145 mm (4-inch wheels); 705 × 345 × 255 mm (10-inch wheels) |
|---|---|
| Weight | 13.3 kg (4-inch wheels); 19.4 kg (10-inch wheels) |
| Operating Range | 100m |
| Wheel Options | 2 sets: 4 × 6-inch and 4 × 10-inch anti-slip wheels |
| Camera Resolution | 5 MP |
| Pan Angle | 360° |
| Tilt Angle | 180° |
| LED Lighting | 3 W × 12 |
| Drive System | Drive System |
| Camera Lift | 60° tilt; 200 mm lift |
| Camera | HD video recording and live streaming |
| Climbing Ability | <30° |
| Obstacle Clearance | <100 mm |
| Waterproof Rating | IP68 |
| Camera Reset | One-touch reset |
| Cable | 100 m standard cable; 200 kg tensile strength |
|---|---|
| Dimensions | 640 × 428 × 532 mm |
| Battery | 60 V 15 Ah; up to 7 hours runtime |
| Weight | 53.6 kg |
| Cable Winding | Automatic / manual / assisted winding |
| Distance Measurement | Electronic encoder |
| System | Branded tablet with built-in data acquisition and analysis software. |
|---|---|
| Communication | Cable/Wi-Fi data and video transmission. |
| Robot Control | Forward/reverse/left/right control |
|---|---|
| Live Monitoring | Live crawler monitoring |
| Project Data | Time, project & inspection data |
| Robot Status | Distance, images & status data |
| Parameter Value: | Import images to generate reports. Training provided. |
|---|
CCTV inspection for municipal, industrial and utility infrastructure
Tell us your pipeline diameter, inspection distance and working environment. Our team can recommend a suitable K18 configuration for your project.
