Precision pipe inspection, redefined.
An all-in-one CCTV inspection system built for municipal drainage, stormwater and industrial pipelines — HD imaging, powerful all-terrain mobility and one-click report generation.
DannaBot D8 is a professional-grade CCTV pipe inspection system built for municipal drainage and sewage networks, industrial discharge pipelines, water transmission culverts and utility tunnels. It integrates a rugged crawler robot, a high-definition rotating camera, a cable reel and a portable control station into one efficient workflow.
See how the DannaBot D8 works inside underground pipes — from deployment to the final report.
From going down the manhole to producing the report, every module works together as a complete inspection system.

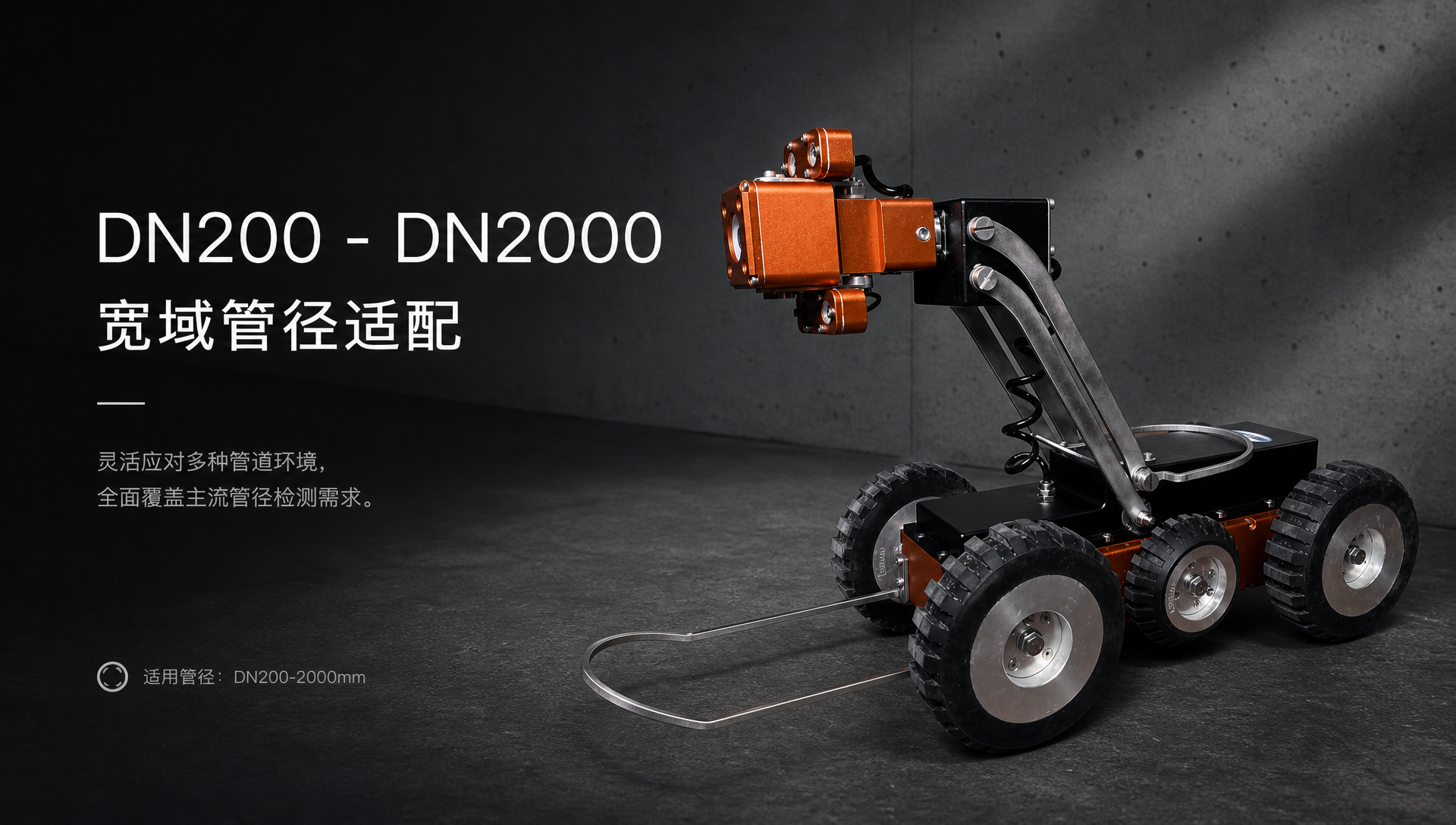

All-terrain chassis with independently driven wheels and 360° in-place steering for strong climbing and obstacle-crossing capability.

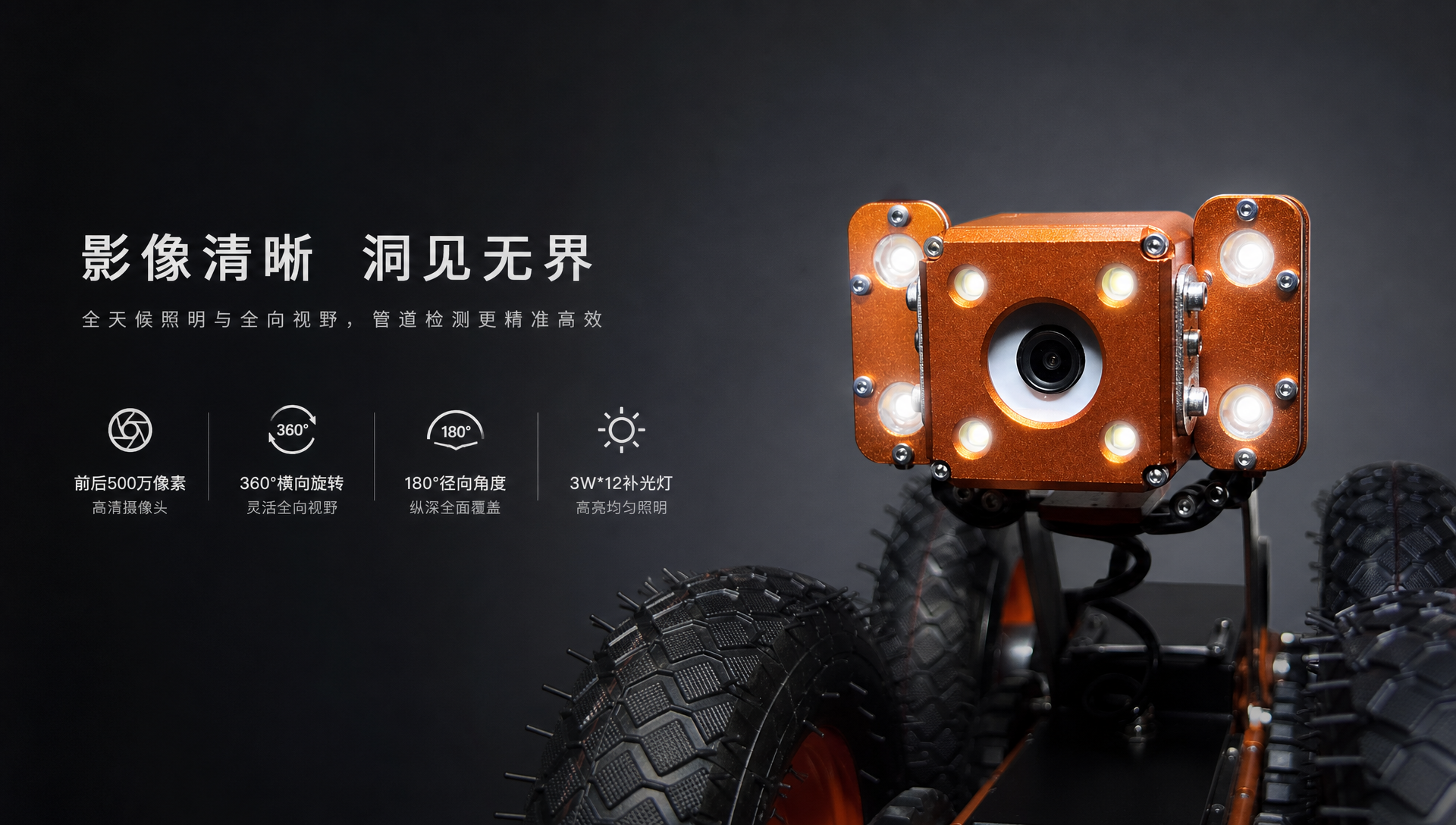

360° rotation, adjustable LED lighting and front/rear view switching clearly capture defects and structural conditions.
A robust cable management system supports long-distance inspection, with an odometer to precisely locate defects.

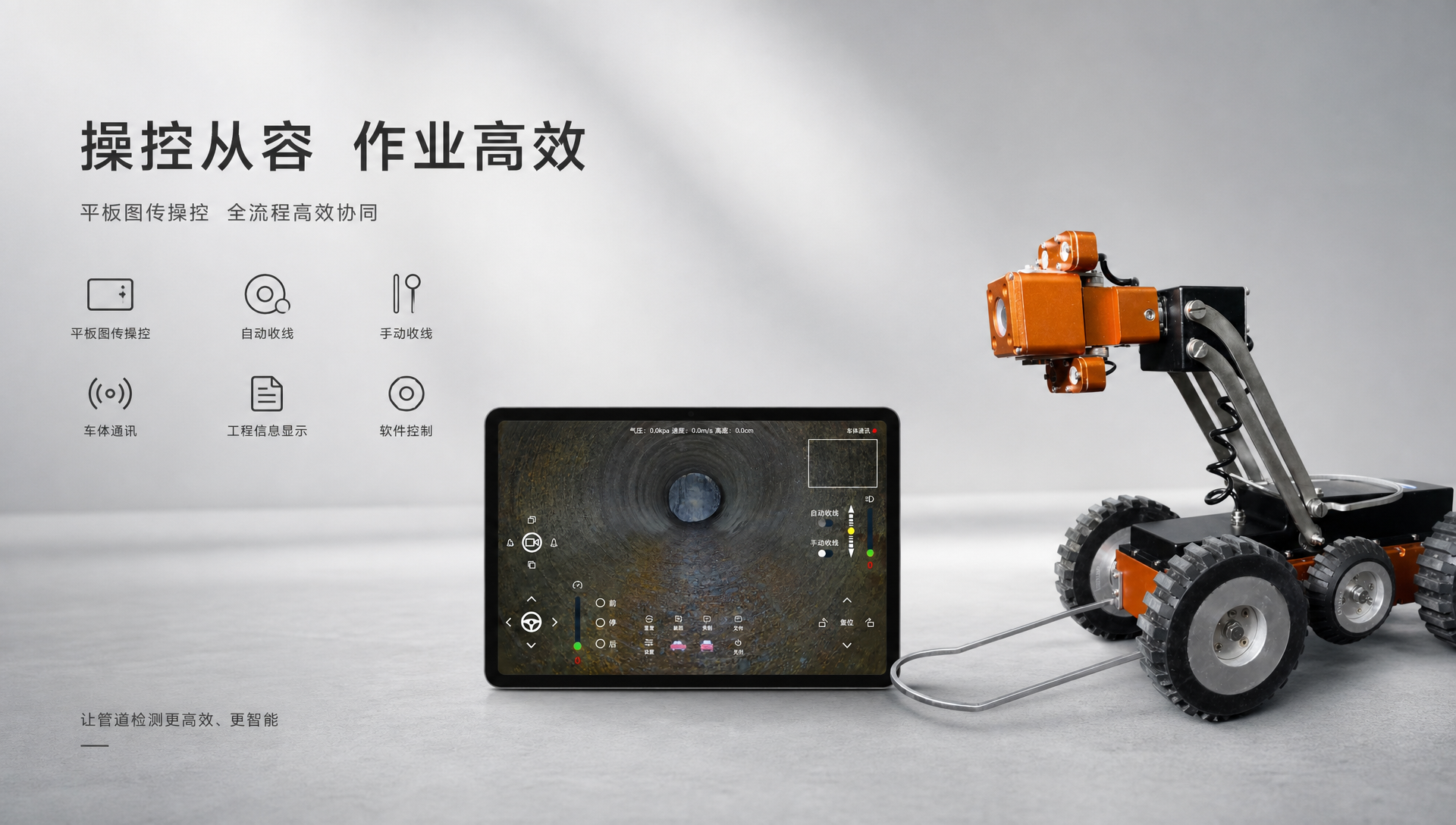

A portable controller with real-time video display, status overlay and built-in inspection and reporting software.
Every detail is engineered for the harshest underground environments.
High-resolution camera with 360° rotation and adjustable lighting; front and rear views on demand for crisp capture of fine defects.
Multiple independently driven wheels with 360° in-place steering and strong climbing/obstacle capability, stable in mud and sediment.
Wirelessly control the robot while the control station overlays video, distance, date and equipment status in real time.

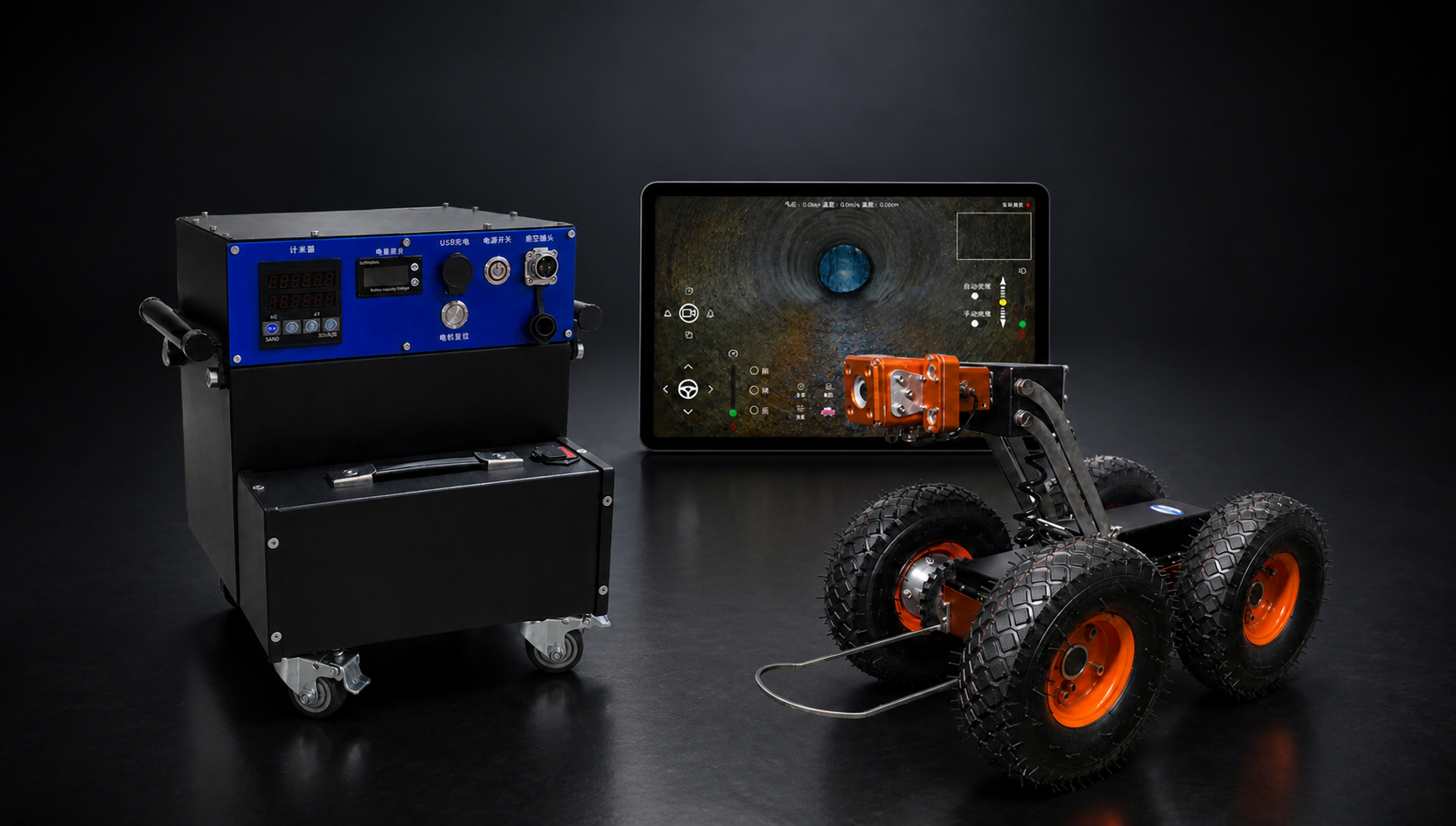

Capture defects on site, assess instantly and generate industry-standard inspection assessment reports with one click.
* Values shown are placeholder examples; final figures are subject to the official product manual.
| Applicable Pipe Diameter | 150–2000mm |
|---|---|
| Obstacle Crossing | ≤100mm |
| Climbing Angle | ≤30° |
| Drive System | Dual-motor six-wheel drive |
| Camera Lift Height & Angle | Lift angle 80° / lift height 178mm |
| Wheel Configuration | 4in×6, 6in×4, 10in×4 |
| Chassis Material | Aluminum alloy + stainless steel |
| Camera Resolution | Front & rear 5MP |
| Camera Rotation | 360° horizontal, 180° radial |
| Lighting | 3W×12 |
| Waterproof Rating | IP68 |
| Cable Length | Standard 100m / pull strength 200KG |
|---|---|
| Dimensions | L×W×H 640×428×532mm |
| Battery | 60V 15AH, up to 7 hours continuous operation |
| Cable Reel | Auto / manual / manual-assisted reeling |
| Odometer | Electronic encoder odometer |
| Weight | 53.6KG |
The DannaBot D8 adapts to municipal, industrial and culvert inspection scenarios.
Contact us for DannaBot D8 specifications, pricing or a customized inspection plan.
